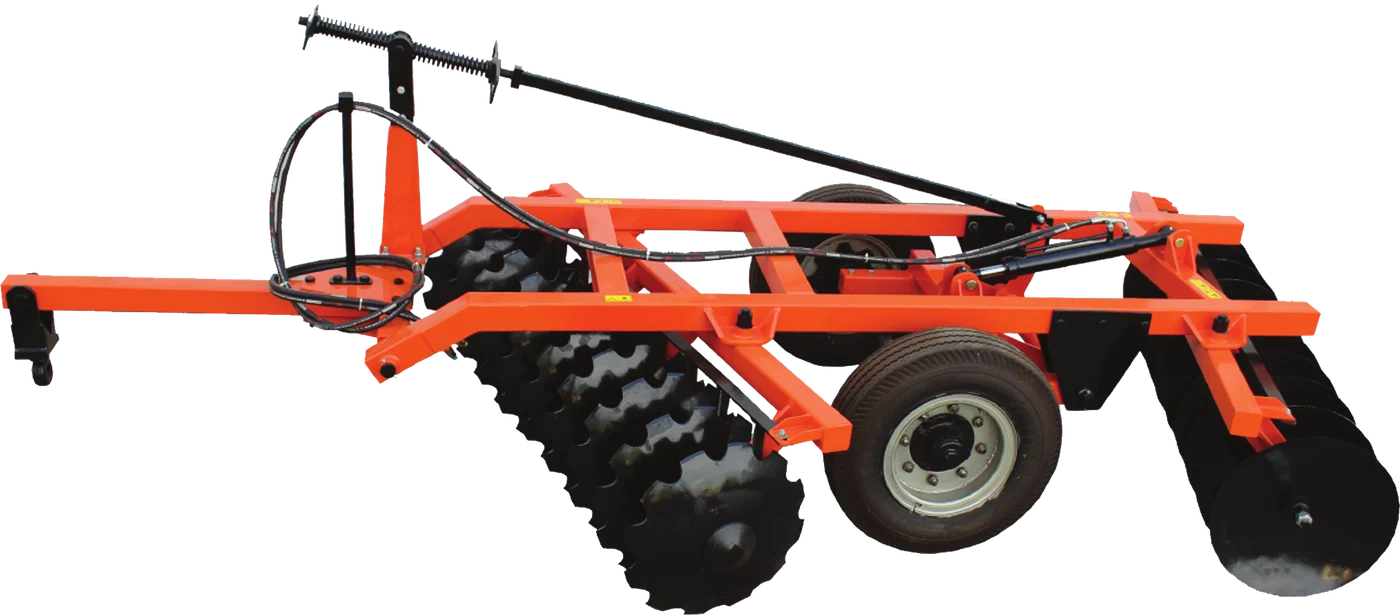

Hydraulic disc harrow, HD series
Trailed disc harrow with hydraulic wheel lift, 18 to 28 discs and 2.1 to 3.1 m working width for 50–125 HP tractors.
18–28 discs

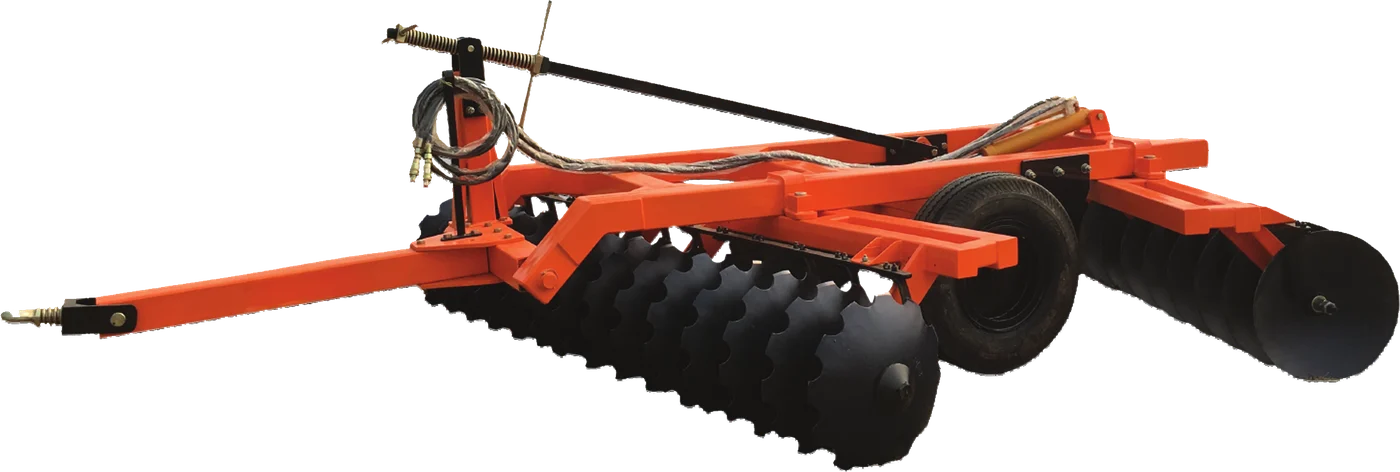

Hydraulic disc harrow, Ultra HD series
The heavy-duty version for 75 to 180 HP tractors and large farms: a stronger 132 mm frame, 32 mm gang axles and 26-inch discs, up to 3.9 m working width.
- Brand
- Shamba Tech
- Group
- Disc harrows
- Available in
- 20–36 discs
- Models
- 5
- Tractor power
- 75–180 HP
- Warranty
- Confirmed on your quotation
- Spare parts
- Available from Meland
Prefer to talk? Call +255 754 293 772 or +255 715 144 122
Technical data
Specifications
Optional parts are not standard equipment. The manufacturer may improve specifications without notice; we confirm the exact specification on your quotation.
| Model | A-HDH20/UHD | A-HDH24/UHD | A-HDH28/UHD | A-HDH32/UHD | A-HDH36/UHD |
|---|---|---|---|---|---|
| Frame | 132 mm and 100 mm square tube | ||||
| Gang axle | 32 mm solid square | ||||
| Number of discs | 20 | 24 | 28 | 32 | 36 |
| Bearing hubs | 8 | 8 | 8 | 8 | 12 |
| Discs | 26 in × 6 mm (24 in × 4.5 mm optional); notched front gang, plain rear gang | ||||
| Tyres | 7.50-16 (400/60-15.5 optional) | ||||
| Working width | 2300 mm | 2700 mm | 3100 mm | 3500 mm | 3900 mm |
| Disc spacing | 228 mm (9 in) | ||||
| Approx. weight | 1630 kg | 1850 kg | 2050 kg | 2210 kg | 2370 kg |
| Tractor power | 75–85 HP | 95–105 HP | 110–120 HP | 140–150 HP | 170–180 HP |
Typical use
What it does
Secondary tillage: breaking clods after ploughing, mixing residue into the soil and levelling the seedbed.
Heavier frame and 26-inch discs for big tractors: 20 to 36 discs, 2.3 to 3.9 m wide, 75–180 HP.
Before you order
Tell us these details
- Tractor make, model and horsepower
- Three-point linkage category (CAT I, II or III)
- PTO available, for PTO-driven implements
- Soil type and size of the land
- Quantity and delivery location
Related
You may also need

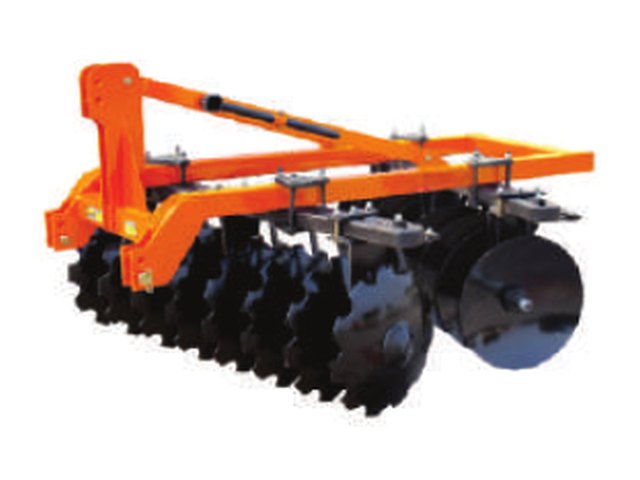

Mounted offset disc harrow
